What Is Steel Frame Construction?
Steel frame construction is a current building way that uses a steel frame structure system to hold up the whole weight of a building. It takes the place of old materials like wood or concrete.
Why Steel Framing Is Widely Used Today
Steel framing is valued for its good strength-to-weight ratio. This lets it cover longer distances without support columns. It also helps create open floor plans. Plus, it can be made ready off-site. That speeds up building times a lot. Often, it cuts total build time by 20–40% compared to concrete. It gives steady quality through careful making. And it helps the environment because steel can be recycled 100%.
Types of Steel Frame Systems
- Light Gauge Steel Framing (LGSF): This is often used in modular homes and small commercial buildings. These thin steel parts are shaped cold and are light in weight.
- Structural Steel Frames: These are made of hot-rolled steel parts like I-beams and H-columns. Steel framesstructures work well for high-rises, factories, and sports arenas.
- Hybrid Systems: These mix steel framing with concrete cores or slabs. These construction systemsare common in places with high loads or areas that shake from earthquakes.
Where Steel Frame Buildings Are Commonly Used
Steel frame buildings find use in many areas:

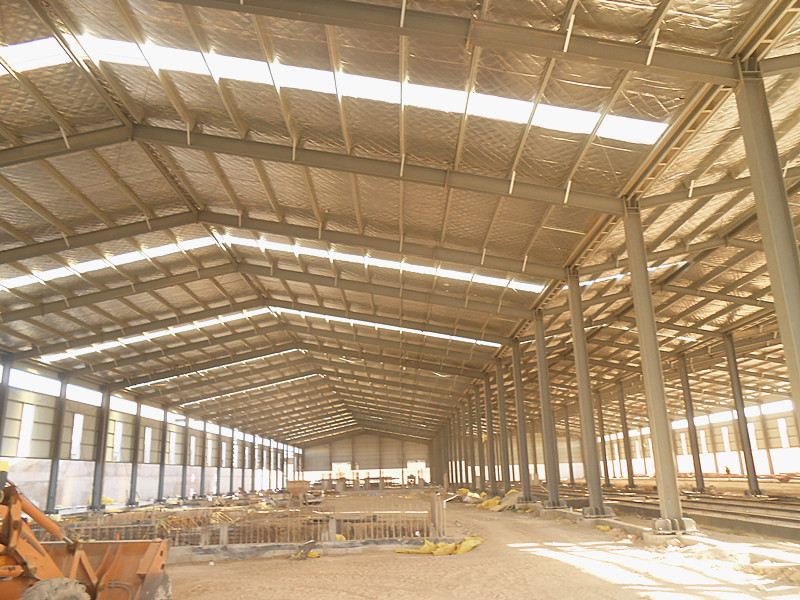

- Industrial spots like warehouses in Malawi (4,500–5,000 sqm) and garment factories in Ethiopia (100,000 sqm)
- Modular or multi-story residential villas
- Schools and airport terminals
- Agricultural buildings such as poultry farms and cattle barns
Step-by-Step Construction Process of a Steel Frame Building
- Engineering, Design & Structural Calculation
Architect drawings move into CAD or BIM models. Engineers calculate wind, snow, and seismic loads to size beams, columns, trusses, and steel studs. This step reduces material waste and makes on-site work smoother. - Off-Site Fabrication & Quality Control
Steel components are produced with CNC cutting, roll-forming, welding, and coating. Each piece is labeled. XINGUANGZHENG uses laser cutting machines, welding robots, box beam automatic lines, and spraying lines to ensure accuracy and quality checks before shipping. - Transport & On-Site Logistics
Finished steel parts are loaded into containers or trucks with surface protection. Materials are placed near installation areas to keep site workflow efficient. - Foundation Construction
Concrete slabs or grade beams with anchor bolts are poured. Bolt alignment is critical; mistakes can delay the entire assembly process. - On-Site Assembly of the Steel Frame

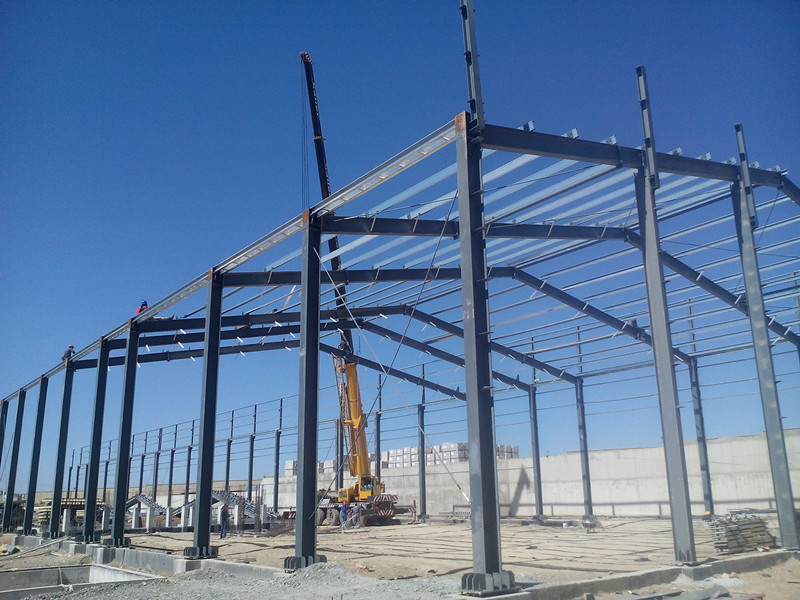

Assembly follows a clear order: columns → beams → bracing → floor systems → roof trusses. Connections use bolts or welding. Cranes and scissor lifts are required, and temporary bracing keeps the structure stable. - Floor, Wall & Roof Systems Installation
Floors use joists and metal decking. Walls receive insulated panels or cladding. Roofs use purlins, corrugated sheets, and waterproof layers. - Final Checks, Finishing & Handover
Structural, fire, and weatherproof checks are completed, and documentation and maintenance guides are handed over.
Advantages of Steel Frame Construction
Faster Construction Time
Ready parts mean less need for workers on site. Projects finish 20–40% quicker than old ways like brick or concrete work.
High Strength & Long Spans
The material of steel’s great strength holds up big open areas. It does this without columns inside. This fits well for places like halls for shows, sports areas, and factories.
Better Cost Predictability
Fewer fixes and less wet work help keep costs in check. This happens all through the steel building process.
Sustainability Advantages
Steel can be recycled fully. It makes little waste when made and put together.
Key Considerations for Buyers, Engineers & Contractors
Material Grades & Coatings
Pick from galvanized steel, hot-dip coatings, or stainless kinds. Do this based on what the area is like. It matters in spots near water or with high wetness.
Compliance & Building Codes
Work should match world rules like Eurocode, BS standards, ASTM codes, or local ones. XINGUANGZHENG has AISC certification. It also has European (EAC), Russian, and Chinese ones. These make sure it fits global needs.
Logistics & Export Considerations
Smart loading of containers cuts shipping costs. Projects can pick bolted or welded parts. This depends on tools at the site and worker skills.
Safety Considerations
Make sure safe ways to reach high spots with scissor lifts or platforms in the air. All materials against fire must meet local rules.
Common Mistakes in Steel Frame Construction—and How to Avoid Them
- Misaligned anchor bolts are delaying assembly
- Insufficient temporary bracing during erection
- Using standard coatings in coastal environments prone to corrosion
- Installing unlabelled or mismatched components
- Incompatible fasteners when connecting light gauge systems (LGSF)
Why Steel Frame Construction Leads Modern Building Projects？
Steel frame structure systems give great bend, quick build, power, and care for the earth. These make them the top pick for current shops and work buildings. XINGUANGZHENG has over 25 years in providing full steel-framed building help. This covers more than 100 countries.
To help buyers understand real project options, several of XINGUANGZHENG’s commonly supplied structural models can be used as a reference during planning and design. For example, the XGZ-HB Series heavy-duty H-beam frames are widely used in logistics warehouses, cold-storage plants, and cross-border industrial projects because they support large clear spans from 24 meters up to 60 meters. For medium-sized workshops, the XGZ-PF Portal Frame Series offers flexible bay spacing (6–12 meters) and works well for factories, poultry houses, and agricultural storage buildings.
For areas requiring faster installation, the XGZ-LGSF100/150 Light Gauge Steel Modules provide a complete system for residential villas, temporary camp buildings, and low-rise commercial units. These cold-formed components come pre-punched and numbered, which matches the off-site fabrication process mentioned earlier. Roof structures often use the XGZ-Z/Purlin (C120–C300 and Z120–Z320) range, depending on wind load and snow load conditions.
XINGUANGZHENG offers full-service construction. It goes from plan to make to set up. This is for jobs from warehouses and factories to shopping centers and airport hangars. Get our brochure or talk to our engineering team. Learn how we can help your next steel building project.
FAQs About Steel Frame Building Construction
Q: How long does a steel frame building take to build?
A: With ready parts and good moving plans, building can finish 20–40% faster than the old ways. Some projects end in 90 days.
Q: Is a steel frame cheaper than concrete?
A: Material prices might be close or a bit more. But savings come from less worker time, fewer fixes, and a quick move-in.
Q: Can steel frame buildings support heavy loads?
A: Yes. Structural steel frames are made to take big weights from machines, cranes, or many floors. Steel-framed buildings use parts sized just right.
Q: What’s the lifespan of a steel frame building?
A: With good coatings and care, a steel frame building can last 50–100 years. This depends on the weather around it.
Q: Are steel buildings fireproof or fire-resistant?
A: Steel does not burn. But it gets weak in high heat. So, materials like coatings that swell or spray-on covers are needed to fight fire.
