The modern automotive industry demands precision, scale, and speed. Our 700-ton portal steel structure solution is specifically engineered for high-output auto parts manufacturing. Based on a professional portal steel structure design, this factory delivers exceptional strength, flexibility, and construction efficiency.
Covering a 9,600 m² footprint (120m × 80m), the facility is purpose-built to accommodate the load-bearing requirements of heavy auto parts production equipment and local climate conditions, while maintaining structural stability and cost efficiency.
From architectural planning and portal steel structure design to precision fabrication and expert on-site technical guidance, we provide a full-cycle partnership that minimizes project risk and accelerates return on investment.
| Parameter | Details |
| Project Type | Auto parts factory building |
| Structure Type | Portal steel structure |
| Size | Length: 120m, Width: 80m, Height: 6m |
| Total Steel Consumption | 700 tons |
| Services Provided | Steel structure design, production, installation guidance |
This auto parts factory building is specifically designed to meet the unique requirements of the automotive industry. This portal steel structure auto parts factory serves as a flexible industrial shell across the automotive production lifecycle:
Manufacturing: Precision machining and parts stamping
Assembly: Automated production lines and robotics integration
Logistics: High-clearance storage for raw materials and finished products
R&D: Independent zones for quality testing and technical development

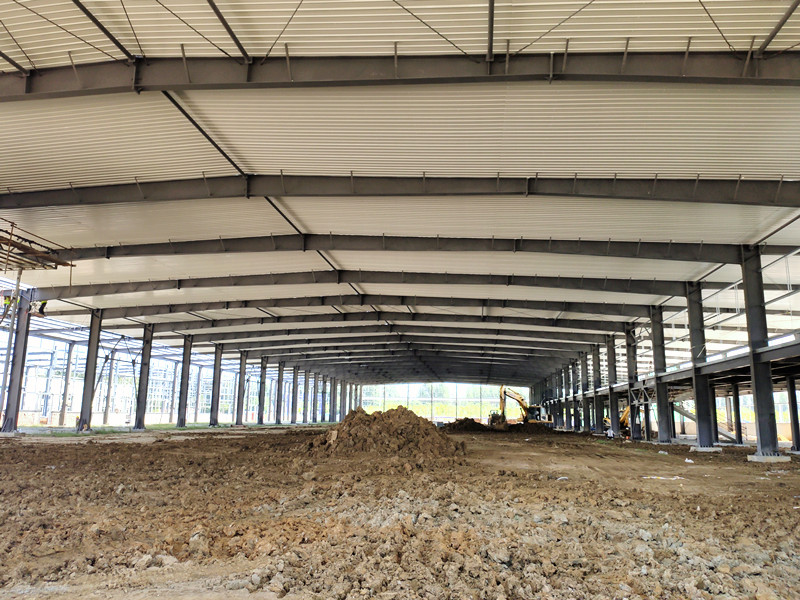

The large-span portal steel structure allows easy layout modification and future expansion.
We eliminate “middleman” inefficiencies by managing the complete design–fabrication–installation guidance workflow in-house. This ensures that every portal steel structure design detail is accurately executed on-site.
Key benefits:
Our in-house engineering team specializes in portal steel structure design for automotive factories, focusing on real-world manufacturing demands.
Design considerations include:
Load-bearing needs for heavy auto parts production equipment, such as stamping, molding, and automated assembly lines
Large-span layouts with minimal internal columns for flexible workflows
Structural optimization based on local climate conditions, including wind, snow, and seismic loads
The result is a steel-structure factory that performs reliably under continuous, heavy-duty industrial operations.
With a total steel consumption of 700 tons, precision and quality control are critical.
CNC cutting plus automatic welding provides precise dimensions
Effective anti-corrosion coatings prolong service life
Thorough factory inspections ensure enduring structural stability
Every component is manufactured to meet international standards for portal steel structure systems.
We go beyond steel delivery. Our senior engineers provide on-site technical guidance to ensure smooth execution.
On-site support includes:
Supervision of complex lifts and structural connections
Training local crews on safety and installation accuracy
Ensuring the project stays on the critical construction path
This approach significantly reduces installation risks and delays.
Reliable. Scalable. Fast.
“Our 700-ton portal steel structure project is not just a building—it is a high-performance asset engineered to support heavy auto parts production equipment and long-term industrial growth.”
Contact our engineering team today for a customized portal steel structure design and project consultation.
