Showroom in Netherlands

Categories： Agricultural, Commercial, Industrial

Project address: Breda, Netherlands

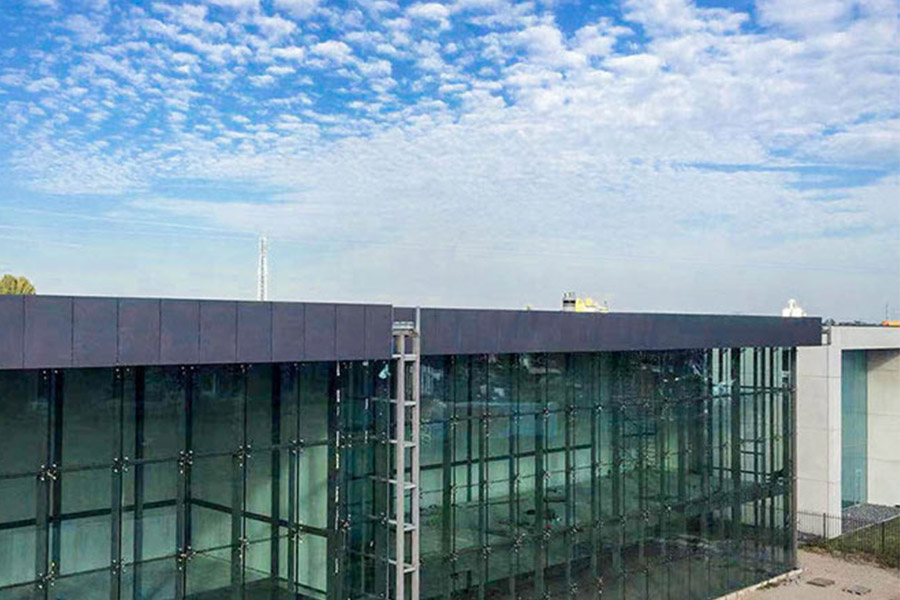

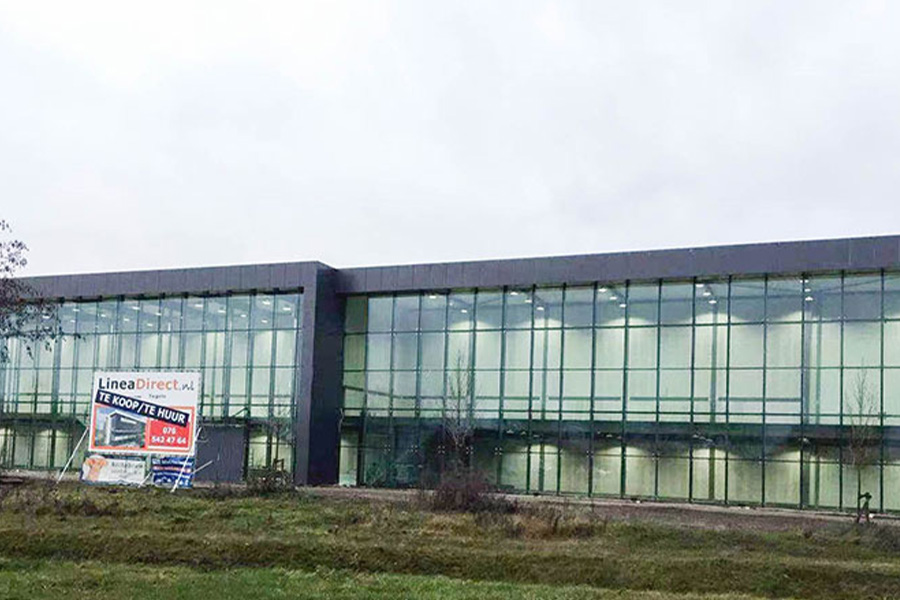

The steel structure showroom constructed in the Netherlands combines contemporary style with practical engineering. A client needed a premium commercial space for displays. This prefabricated project moves from heavy traditional builds to a clean, simple design.

The structure employs a custom steel frame system made in Chinese factories. Workers deliver the unit as a complete prefab kit. This approach guarantees that detailed architectural features, like the wide glass front, match the steel parts exactly when they reach the Netherlands. Assembly happens quickly on site.

Message

PROJECTS Details

Adjusted for Local Conditions and Dutch Aesthetics

The Netherlands has a mild coastal climate. Summers stay moderate. Winters remain cool. Rain falls regularly.

Corrosion Resistance:Coastal air and moisture demand protection. All steel parts receive thorough anti-corrosion surface treatments. These steps secure lasting strength and visual charm.

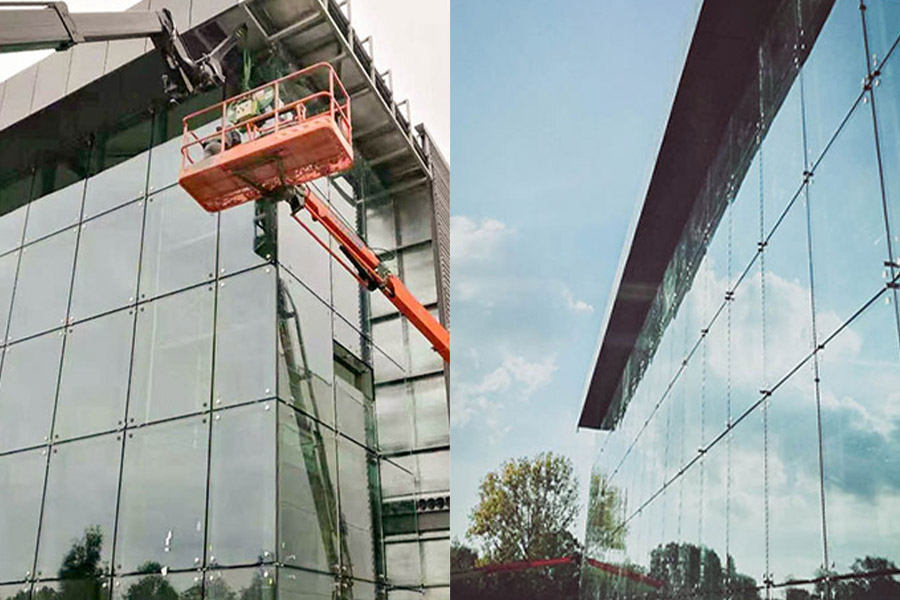

Modern Envelope System:The building meets European style norms and energy rules. A large-scale glass curtain wall covers the front. This setup offers clear views for showcasing products. It also blends the structure smoothly into the current Dutch city setting.
Advanced Wall Cladding:Exterior walls use 780-type horizontal large-wave panels. These panels provide a unique surface and better drainage than typical upright sheets.

Functional Design and Spatial Optimization

Maximized Natural Light:The showroom stands out with its expansive glass curtain wall. Designers focus on openness. This choice cuts down on electric lights during daytime hours. It also builds a welcoming space for visitors.
Open-Span Interior:H-section columns and beams create a broad open area inside. Few support posts block the space. Showrooms benefit from this layout. Clients can shift big exhibits or dividers easily.
Thermal Performance:The Dutch weather varies by season. Roofs and walls include effective insulation materials. These elements keep indoor air comfortable. They offset the warmth from glass areas.

Technical Specifications

The following data outlines the core technical parameters of the Netherlands Showroom project:

Category	Technical Details
Total Floorage	3,100 Square Meters
Primary Structure	Q355B Welded H-section steel(Columns & Beams)
Secondary Structure	High-strength galvanized C/Z purlins
Front Facade	Large glass curtain wall system
Wall System	780-type horizontal large-wave panels
Roof System	Color-coated steel sheets with high-density insulation
Surface Treatment	Premium anti-corrosion painting/galvanization
Structural Warranty	50 Years

Project Highlights

Architectural Elegance:Horizontal wave panels pair with glass curtains. This mix delivers a high-quality appearance. The design fits luxury stores or company’s main offices.
Efficiency:Prefabrication shortens site work by about 40% over standard approaches. This cut saves labor expenses in Europe.
Sustainability:Steel is 100% recyclable, and the inclusion of natural lighting solutions aligns with modern green building initiatives.

Typical Uses

Designers built the space as a commercial showroom. The frame adapts well to other purposes.

High-end automobile 4S dealerships.
Corporate flagship offices.
Furniture or industrial equipment display centers.
Modern retail shopping hubs.
