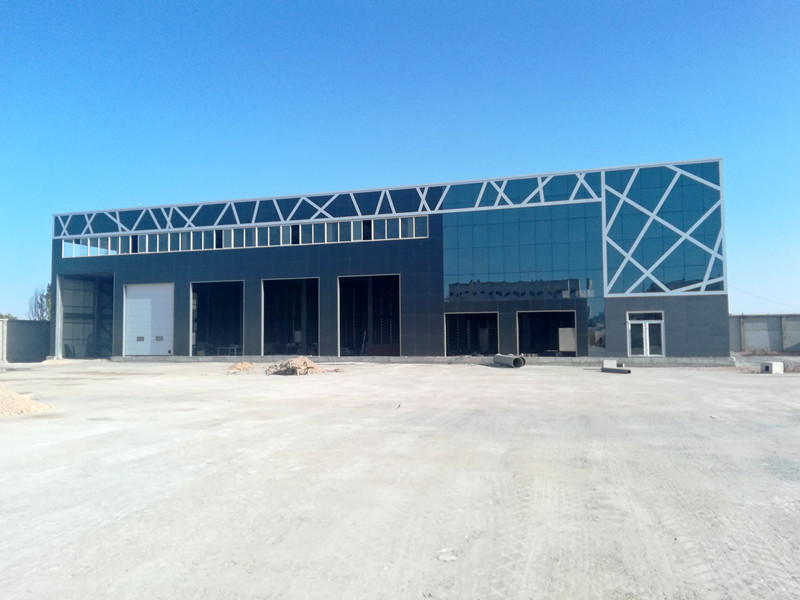

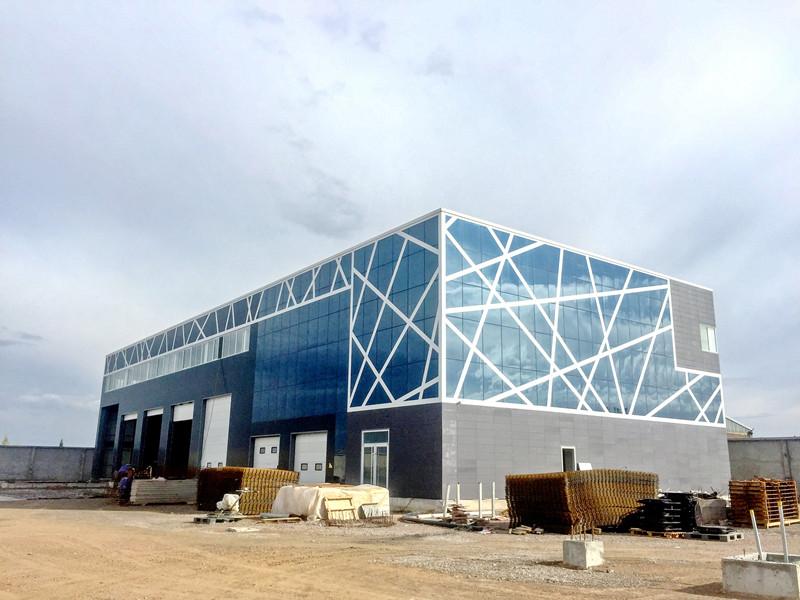

The logistics workshop project in Setif, Algeria blends basic industrial use with current building style. Workers use a basic portal rigid frame system plus a clear glass front, so the 3-story building acts as a strong work center and a clear sign of new industrial design in the area.
The Algeria logistics workshop forms a full center made to handle rising needs for storage, logistics, and office work. The project covers a total area of 7,200 square meters. The main structure measures 120 meters long, 60 meters wide, and 8 meters high. The mix of a prefabricated steel structure with fine building cover materials led to a quite short build time of only 4 months.
The following table summarizes the primary technical data and material configurations for the Algeria Logistics Workshop:
| Category | Detailed Specifications |
| Location | Setif, Algeria |
| Building Type | 3-Story Logistics Workshop with Integrated Offices |
| Total Area | 7,200 Square Meters |
| Dimensions | 120m (L) × 60m (W) × 8m (H) |
| Structural System | Portal Rigid Frame Steel Structure |
| Main Framework | Prefabricated H-beams connected by high-strength bolts |
| Roof System | Corrugated steel roof panels with insulation |
| Wall System | Glass curtain wall, Alu composite panel, Terracotta panel |
| Secondary Support | Steel purlins, wind trusses, and cold-formed thin-walled sections |
| Protection | Anti-corrosion coating and fireproof wrapping technology |
The portal rigid frame design offers a wide space of 120m × 60m. This cuts down on extra inside posts, which lets planners set up logistics racks, automated sorting systems, and good vehicle paths in the 7,200 sqm area.
Speed sits at the core of our prefabricated steel buildings. The factory built all main steel parts with fine care, and the team put them together fast on site with high-strength bolts. Such a simple method allowed the whole structure to finish in just 4 months, which lowered labor costs and cut time to start.

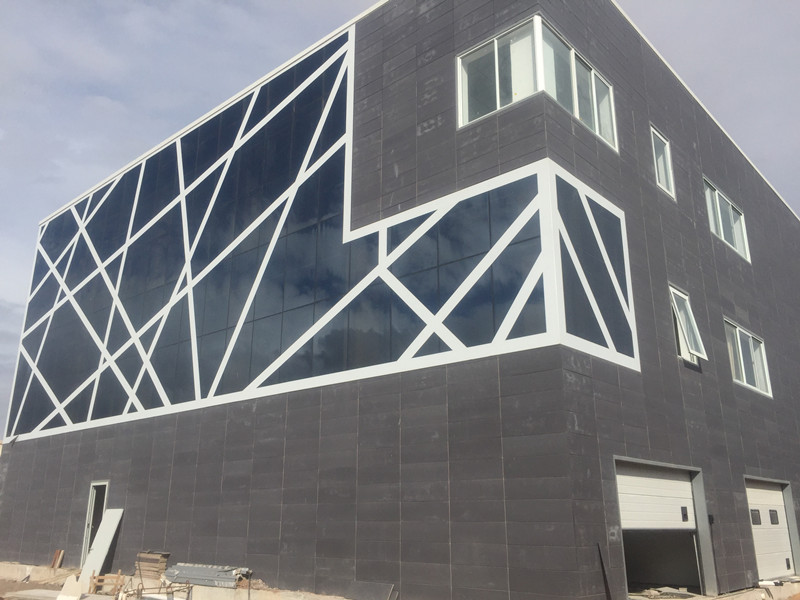

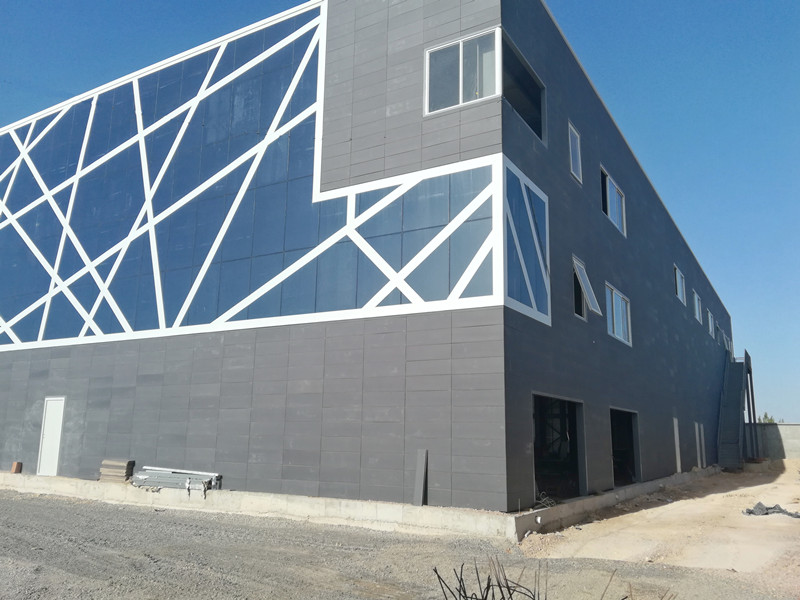

This project differs from old square warehouses. The plan joins a glass curtain wall with a straight steel support in a fresh way. Light and shadow mix on the metal side, so the building turns into a “metal crystal” in the desert. Terracotta panels and aluminum composite panels bring a level of fresh style.
The design stands up to local weather with fine anti-corrosion coatings. Also, fireproof wrapping technology covers the steel parts to match world safety rules and raise the building’s work life past 50 years.
