Drug Warehouse in Algeria

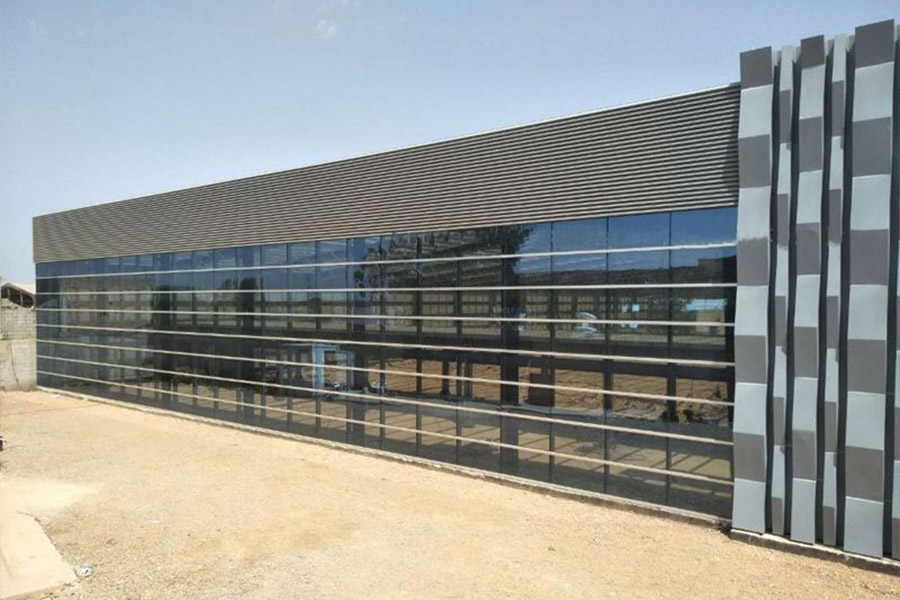

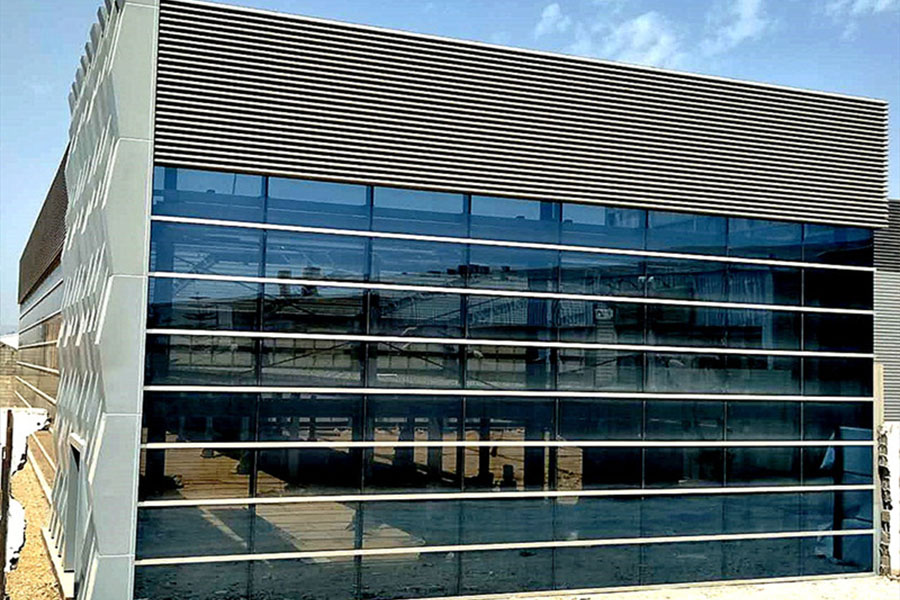

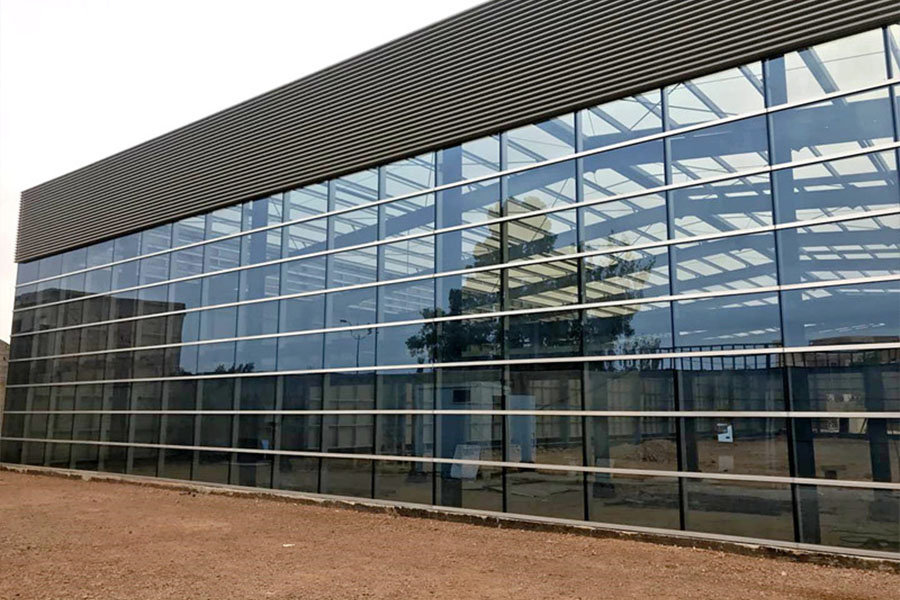

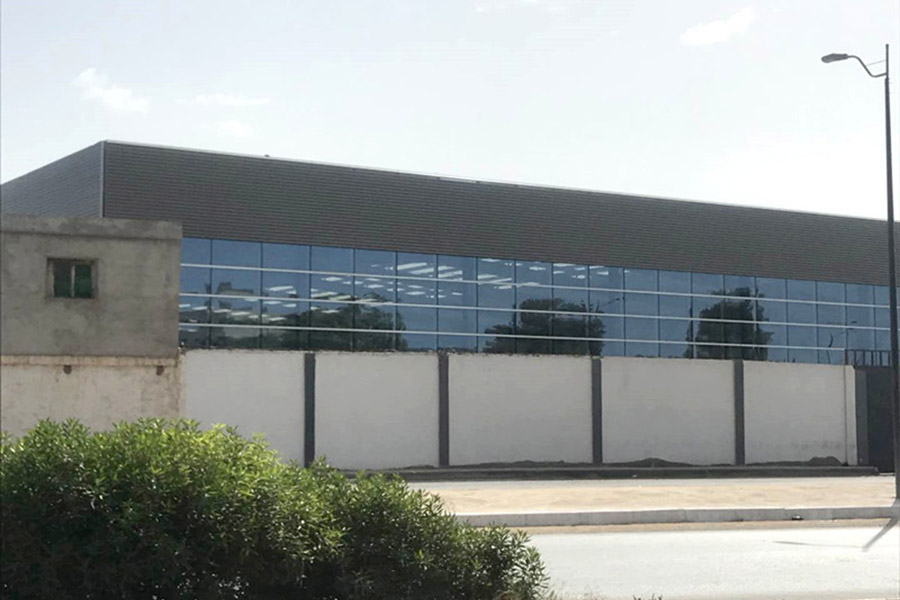

The project is located in Oran, Algeria. The size: 104*94*8.5m. Building area is about 10000 square meters. Front and office part use glass curtain wall and Aluminum plastic panels.

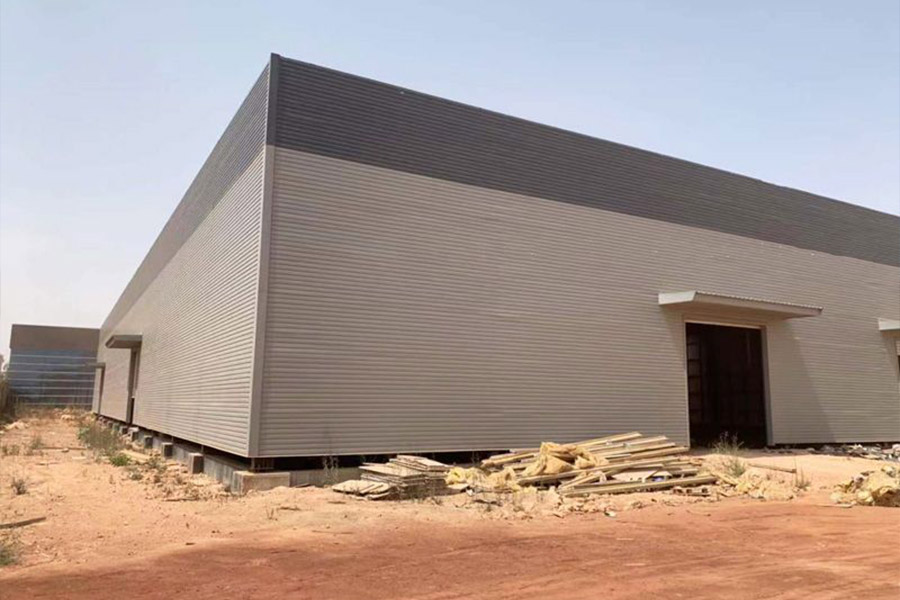

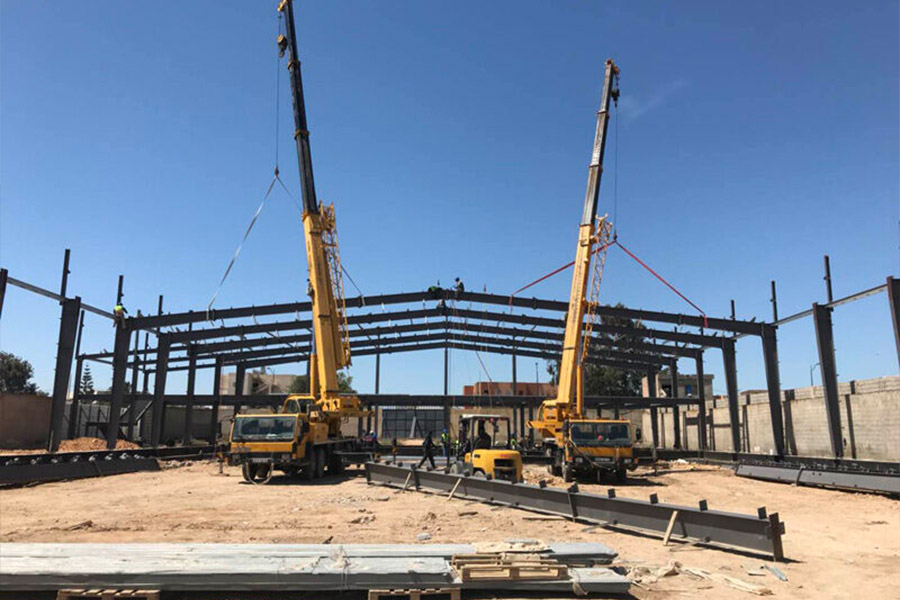

This building total 9776 square meters, with main structure of portal frame. The steel structure materials are Q355B and Q235B, and the surface of the components is painted. The roof is composed of panels, and the walls are composed of panels, glass curtain walls, and aluminum panels.

According to the customer’s requirements, we have arranged installation technicians to provide on-site installation guidance and assist the customer in completing the installation smoothly.

Planning a Warehouse or Logistics Building

For a comparable warehouse, the structural layout should follow the storage system and material flow rather than a generic building size. Confirm rack loads, clear height, column spacing, loading-bay positions, forklift and truck routes, fire separation, insulation and any crane or mezzanine requirements before structural design.

Information needed for an initial proposal

• Project location and site conditions
• Required length, width, eave height and clear span
• Stored goods, rack layout and floor or mezzanine loads
• Door positions, loading method and internal traffic flow
• Local wind, rain and seismic design criteria supplied by the project team
• Insulation, ventilation, fire-protection and future-expansion requirements

See more steel structure projects, review our project services, or send the project brief to Xinguangzheng for an engineering review.
