This television factory steel structure building in Algeria is an excellent prefabricated industrial solution. Engineers designed it especially for TV manufacturing. It fits high-tech assembly, storage, and modern corporate office use.

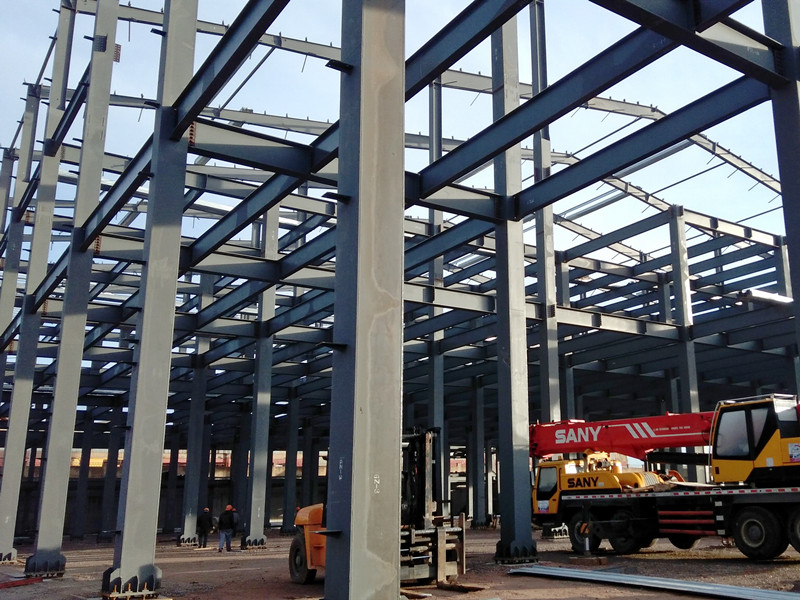

The project features a 3-storey box-column steel-frame structure. This structure gives solid load-bearing capacity. It allows adaptable internal floor plans. It supports fast on-site assembly. This approach stands as the top architectural solution for electronics manufacturing hubs. It works for integrated industrial complexes.
| Parameter | Details |
| Project Type | Prefabricated steel structure workshop |
| Location | Algeria |
| Size | Width: 64m, Length: 101m, Height: 20.8m |
| Area | 20,160sqm |
| Total Cost | 2.2 million dollars |
| Use | Television production |
| Total Steel Amount | 1500 tons |
| Main Frame Structure | Box column, 3 – story frame |
| Roofing Material | 50mm thick V – 1000 PIR composite panel (orange – yellow) |
| Wall Panel Material | 50mm thick V – 1000 PIR composite panel (orange – yellow + white – gray) |
| On–site Guidance Personnel | 19 professional engineers (2 for installation, 1 for curtain wall aluminum – plastic panel installation) |
| Design Standard | Customized (GB / ASTM / Eurocode) |
| Service Scope | Design, Fabrication, Shipping, Installation Support |
Project Location: Setif, Algeria
Total Building Area: 20,160 square metres
Building Dimensions: 64m × 101m × 20.8m

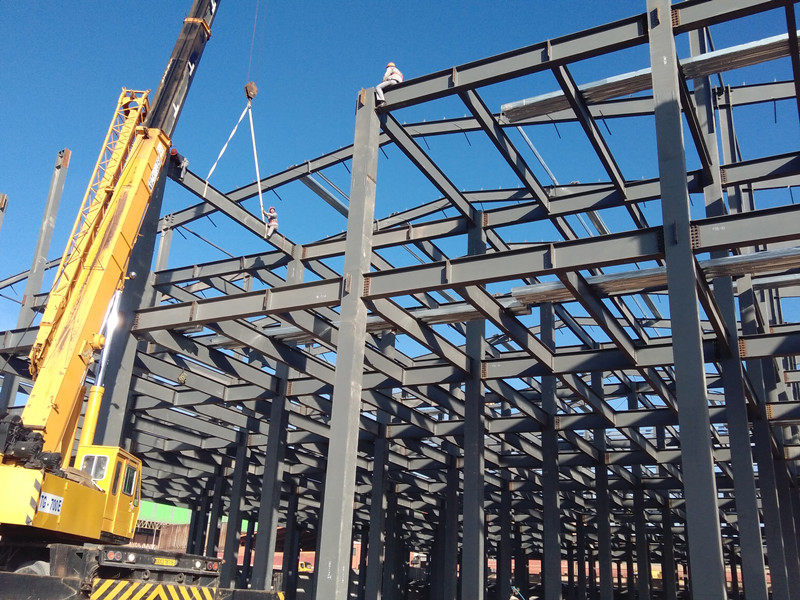

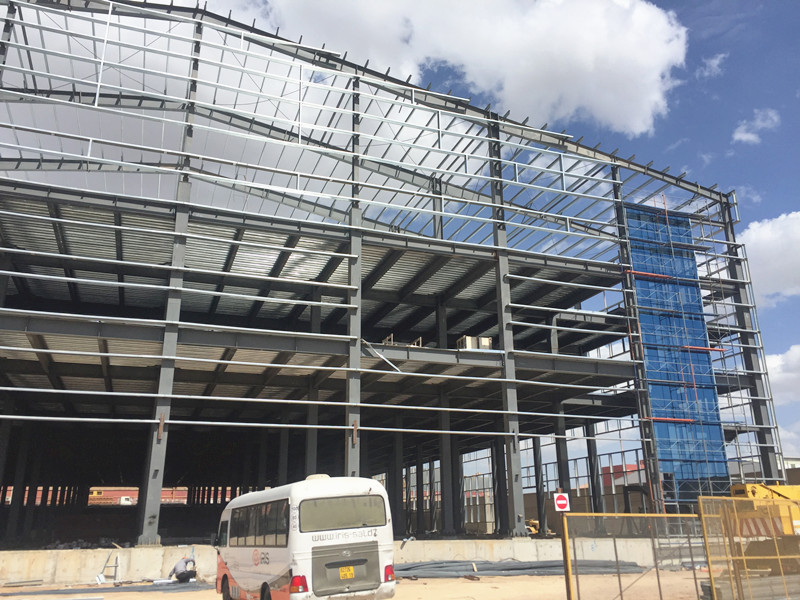

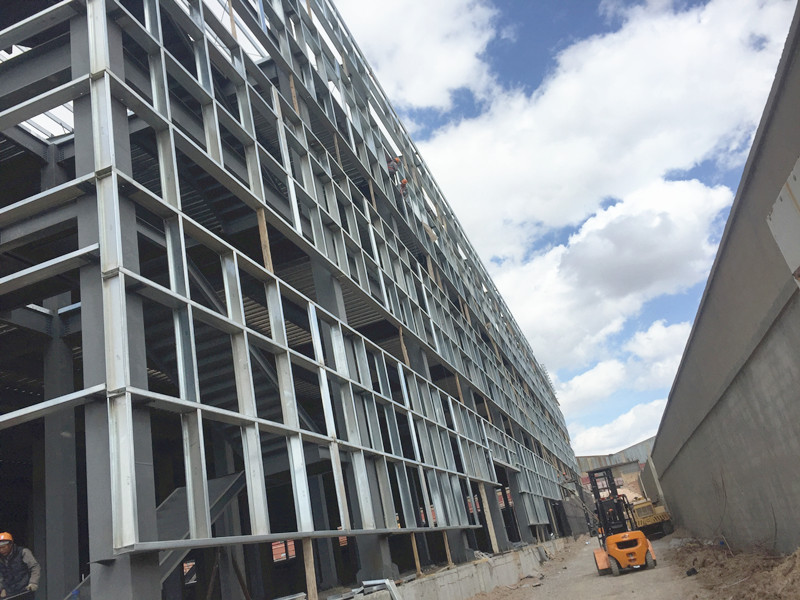

Structure Type: Multi-storey Box Column Steel Structure (3 Floors)
Steel Consumption: 1,500 tons

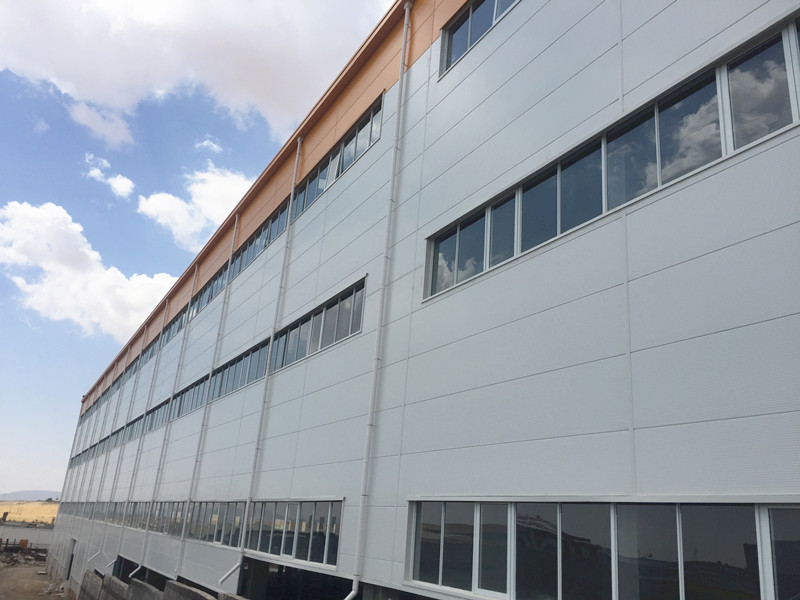

Enclosure System: High-performance PIR/PU Sandwich Panels

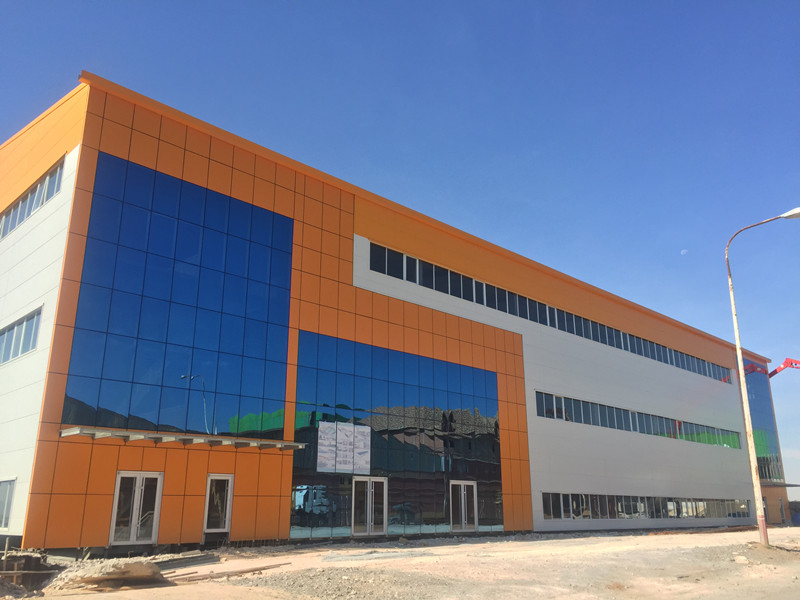

Exterior Features: Integrated Glass Curtain Wall for modern aesthetics and natural lighting
Project Value: USD 2.2 million
Engineers built this facility to meet the strict standards of the electronics industry. The facility provides key features.
Large-Span Design: It makes the most of clear floor space. This design supports adaptable TV production line setups.
Factory-Office Integration: The setup offers a smooth change from tough production workshops to upscale office spaces.
Energy Efficiency: PU/PIR panels deliver solid thermal insulation. This insulation helps keep indoor temperatures even. Even temperatures safeguard delicate electronic components.
Modern Aesthetic: Steel panels mix with glass curtain walls. The mix forms a business-like corporate look. It supplies a well-lit work setting.
Main Structure: Factory-built Box Columns and H-beams feature accurate welding.

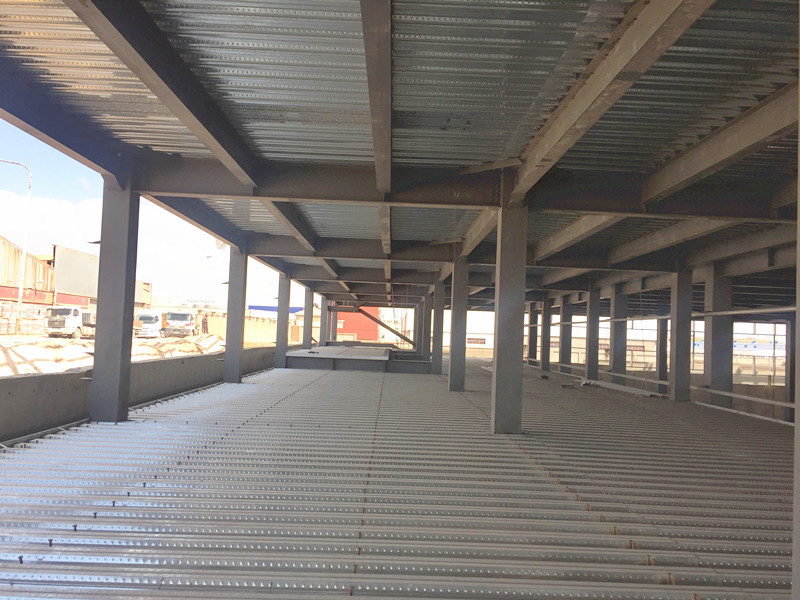

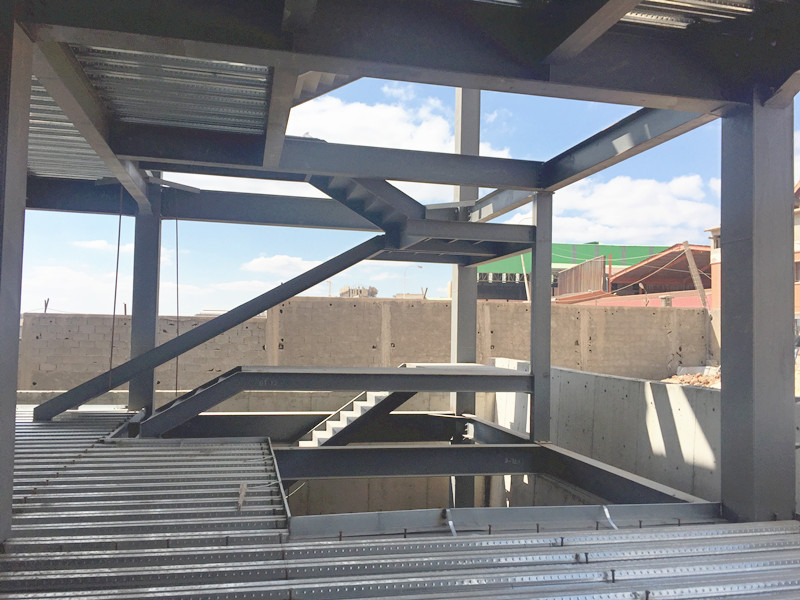

Floor System: Steel secondary beam system with concrete slabs (for multi-storey high load capacity).
Wall & Roof Panels: * PIR Sandwich Panels: Strong fire resistance (B1 grade).
PU Sandwich Panels: Top thermal insulation (Type 1000 0.5/50/0.4mm or customized).
Surface Treatment: Tough anti-corrosion painting or galvanization, suited for the Algerian climate.
Facades: Quality glass curtain walls for the office and showroom sections.
Xinguangzheng Group is a leading provider with 27 years of experience. The group supplies a turnkey solution.
27+ Years of Expertise: Established track record in large-scale industrial projects since 1997.
Algerian Market Specialists: Broad experience with local regulations and climate conditions in Algeria.
Fast & Cost-Effective: Prefabricated components reduce construction time by 30-50% compared to traditional concrete construction.
Durability: Built for high seismic stability and long-term industrial use.
Box columns offer greater torsional rigidity and load capacity than standard H-beams. This quality makes them key for multi-storey factories. Such factories support heavy machinery and production lines.
The glass curtain wall goes beyond the modern “high-tech” look. It greatly boosts natural daylight in the office and showroom areas. This boost lowers energy costs. It enhances employee well-being.
Yes. XINGUANGZHENG provides comprehensive installation manuals. The company can send experienced engineers to the site in Algeria. Engineers deliver technical guidance and quality control.
