The steel structure warehouse built in Panama is a prefabricated project created for a client who needed a practical space for storage and logistics.

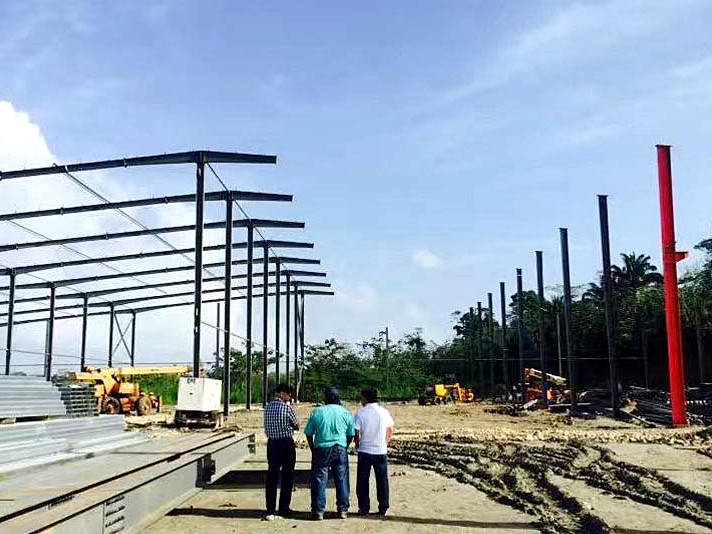

Instead of a complicated layout, the design stays straightforward. It uses a steel portal frame, welded H-section columns, and beams that form a clean interior span.
All steel components were produced in China and shipped as a complete prefab kit, ready for installation once they reached Panama.
The total dimensions of the building measure 100 m × 50 m × 15 m.
This structure relies on a sturdy frame. The frame primarily features welded H-section steel. It combines with galvanized C/Z purlins. Such a design provides solid support for the building. It performs reliably amid Panama’s moist, warm, and frequently rainy weather.
This steel structure warehouse can be used for several purposes, for example:
A mezzanine floor sits on one side, giving the client a separate office area inside the warehouse.
Panama experiences long wet seasons and high humidity.
To deal with this, the frame uses Q355B welded H-section steel. It offers a strong load-bearing capacity, keeping the structure stable across the full 100-meter span.
The envelope uses a mix of panels and insulation materials:
Both roof and wall systems help reduce heat transfer and maintain better indoor conditions in humid weather.
A concrete strip foundation supports the entire building.
A low brick base is situated under the wall panels, providing extra resistance to ground moisture and extending the lifespan of the insulated panels.

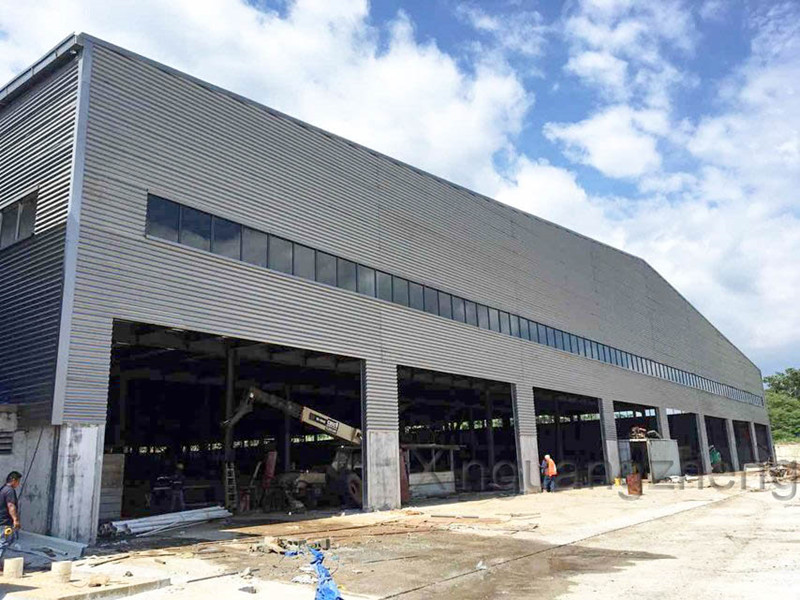

On the entire length of the steel structure warehouse, eight roller shutter doors sit in place. They form several entry points.
This setup allows forklifts and trucks to enter and exit without much waiting. It proves especially useful during peak times.
Windows are installed around the walls to bring enough natural light into the warehouse.
This reduces electricity use during the day and helps improve visibility inside the space.

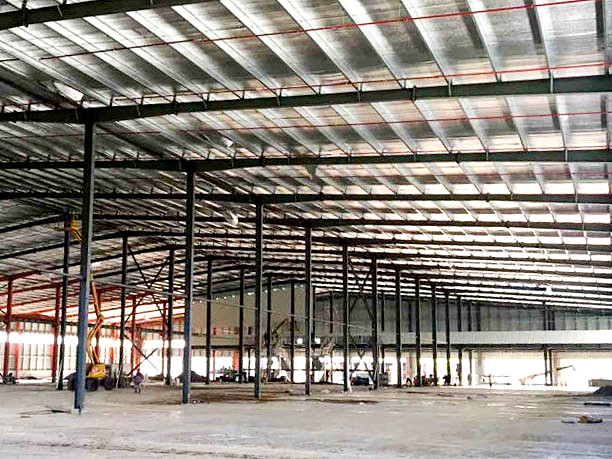

With a portal frame and minimal internal columns, the interior remains open.
That makes reorganizing storage racks simple and gives forklift drivers enough room to work safely.
Structure Type: Steel portal frame
Material: Q355B welded H-section steel
Secondary Structure: Galvanized C/Z purlins
Roof System: V-840 panel + 100 mm glass wool + steel wire mesh
Wall System: 780 horizontal panel + 50 mm glass wool + wire mesh
Foundation: Concrete strip foundation
Service Life: Over 50 years
Delivery: Prefabricated steel building kit
| Dimensions | 100m*50m*15m |
| Components | Column 450cm*250cm*8cm*10cm |
| Beam 350cm*200cm*6cm*8cm | |
| Purlin 180cm*70cm*20cm*2.5cm | |
| Roof V-840 panels, glass wool 100mm, steel wire mesh | |
| Wall 780 Transverse outer plate, glass wool 50mm, steel wire mesh | |
| Windows: continuous window, single window | |
| Structural Warranty | 50 years |
This building has a part of the mezzanine, which is used as an office.
This prefab steel structure warehouse works well for distribution, commercial storage, light industrial use, and mixed office-warehouse setups.
Because the steel parts were prefabricated, the on-site installation time is reduced.
This lowers labor requirements and helps control the overall budget.
Glass wool insulation, wire mesh, and anti-corrosion coatings help the building perform well in Panama’s tropical environment.
The portal frame layout enables the warehouse to be easily extended by adding extra bays as needed, accommodating increased space requirements.
To prepare a detailed plan for your Panama project, please provide:
Our engineering team will design a customized steel structure warehouse layout tailored to your specific requirements.
