A portal frame may look like a simple arrangement of columns and rafters, but its performance depends on the joints that make those members act together. Eaves connections, ridge joints, column bases and splices must transfer design forces while remaining practical to fabricate, ship and erect.
This guide explains the main portal frame connection details for warehouses, factories, hangars, commercial buildings and agricultural facilities. It focuses on how to read each detail and which project conditions must be confirmed before production.
How Do Portal Frame Connections Work as a Structural System?

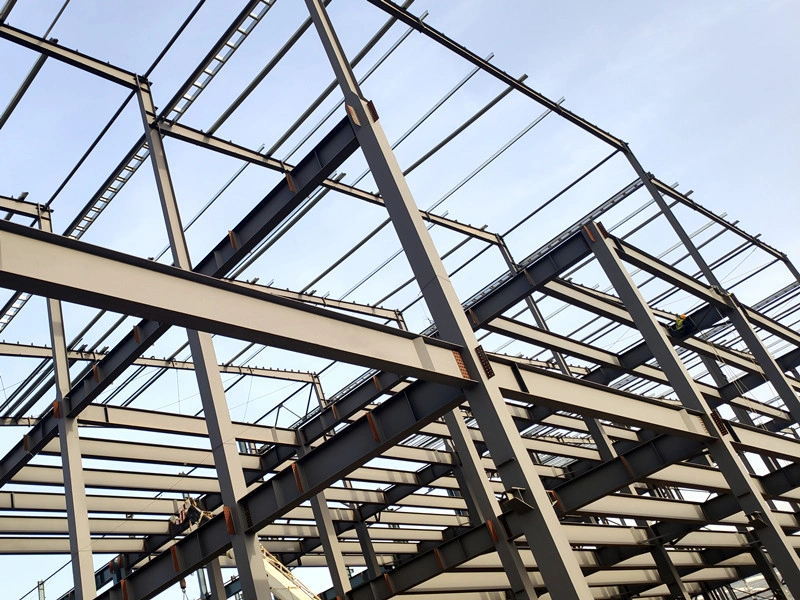

Steel Portal Frame Components and the Load Path
The primary steel portal frame components are columns, rafters and haunches. Purlins support the roof covering and restrain the rafters, while side rails support wall cladding. Eaves members, roof bracing and wall bracing provide longitudinal stability.
Loads move from roof panels into purlins and then into rafters. The eaves joints transfer forces to the columns, and the column bases deliver reactions into the foundations. Changing joint stiffness can alter moments, deflection and foundation demand.
How to Read a Portal Frame Detail
A useful portal frame detail should identify:
- Member sizes, steel grades and orientation
- End plate, base plate and stiffener dimensions
- Bolt diameter, grade, quantity, spacing and access
- Weld type, length and quality requirements
- Haunch geometry, levels, tolerances and coatings
The drawing must agree with the structural calculations. A joint modeled as rigid cannot be replaced on site with a more flexible arrangement without an engineering review.
Eaves and Knee Connection Details
Portal Frame Haunch Detail at the Eaves
The eaves, also called the knee, is often a high-moment region. A tapered haunch increases local rafter depth, adding strength and stiffness where needed without making the whole rafter heavier.
A portal frame haunch detail should show its cut profile, flange and web welds, end plate position and restraints. The geometry must also leave space for gutters, roof sheets, insulation and bolt tightening. Haunch dimensions are project-specific rather than universal.
End Plates, Bolts, Welds and Stiffeners
A typical portal frame knee connection uses a welded end plate on the haunched rafter end, bolted to the column. The bolt group develops tension and shear, while the plate, welds and connected flanges complete the force path.
Stiffeners may be needed where concentrated forces could cause local flange bending or web deformation. Their use depends on member proportions, plate thickness, bolt layout and calculated forces. Unnecessary stiffeners can add welding, distortion control and fabrication time.
Common Knee Connection Detailing and Erection Risks
Common problems include misaligned holes, limited wrench clearance, reversed members, coating damage and missing restraints. The detail review should cover:
- Bolt installation sequence
- Access around purlins and eaves members
- Temporary stability before bracing is complete
- Cladding and gutter interfaces
- Tolerance between steelwork and foundations
Resolving these issues in the workshop is generally more controlled than modifying steel on site.
Apex Connection Details
How the Portal Frame Apex Connection Transfers Forces
The portal frame apex connection joins the rafters at the ridge. Depending on the analysis model, it may transfer moment, shear, and axial force. Bolted end plates also divide the roof beam into transportable sections for site assembly.
Joint stiffness matters. Excessive flexibility can increase rotation and frame deflection, while an inaccurate rigid assumption may change force distribution. The actual plates, bolts, and welds must match the modeled behavior.
Apex End Plates, Bolt Rows, Haunches and Alignment
An apex detail may use direct end plates or a locally deepened ridge arrangement. It should define plate geometry, bolt rows, rafter slope, ridge level and required stiffeners.
Accurate alignment protects both the structure and building envelope. Incorrect ridge geometry can affect rafters, purlins and roof panels, while poorly positioned secondary members may block access to bolts.
Base Plate and Foundation Connection Details
Pinned vs Moment-Resisting Portal Frame Base Connection
A column base may be modeled as nominally pinned or designed to provide significant rotational restraint. Actual steel connections generally behave somewhere between the theoretical extremes of a perfect hinge and a fully rigid joint.
| Base type | Structural behavior | Project effect |
| Nominally pinned | Mainly transfers axial force and shear | Simpler steelwork, but potentially greater frame sway or eaves moments |
| Moment-resisting | Transfers significant bending through the plate, anchors and foundation | Greater restraint, but higher demands on steel and concrete |
Neither option is always preferable. Selection depends on lateral loads, geometry, serviceability, soil conditions, fire requirements and foundation cost.
Base Plates, Anchor Bolts, Grout and Concrete Coordination
The complete portal frame base connection includes the column end, base plate, anchor bolts, nuts, washers, grout, leveling method and reinforced-concrete support. Bolt projection, edge distances, foundation level and tolerances must be confirmed before concrete placement.
At XINGUANGZHENG, we coordinate customized design support with production planning, delivery and installation assistance. Our teams can refine a solution from the customer’s project information and reduce coordination between separate suppliers. This is valuable at the steel-to-concrete interface, where an early mismatch can delay erection.
Splice Connections, Fabrication and Site Assembly
Portal Frame Splice Connection: Location and Design Logic
Rafter and column splices may be required because of material lengths, container dimensions, road limits or crane capacity. A splice should be placed where calculated forces can be transferred safely, and installers can reach the bolts.
The portal frame splice connection must consider plate thickness, bolt-group capacity, member alignment and erection sequence. Choosing a position only for shipping convenience can create unnecessary structural demand or difficult work at height.
From Shop Drawings to Fabrication and Erection with XINGUANGZHENG
At XINGUANGZHENG, we integrate design, production, scheduling, installation and after-sales support. We operate multiple production plants and steel structure lines, supported by technical and project teams serving industrial, commercial and agricultural buildings internationally.
Approved drawings become component marks, plate-cutting and drilling data, welding instructions, surface-treatment requirements, packing lists and erection information. Our production digitalization system covers planning, technical management, quality, logistics and BIM visualization, supporting standardized coordination from drawings to delivery.

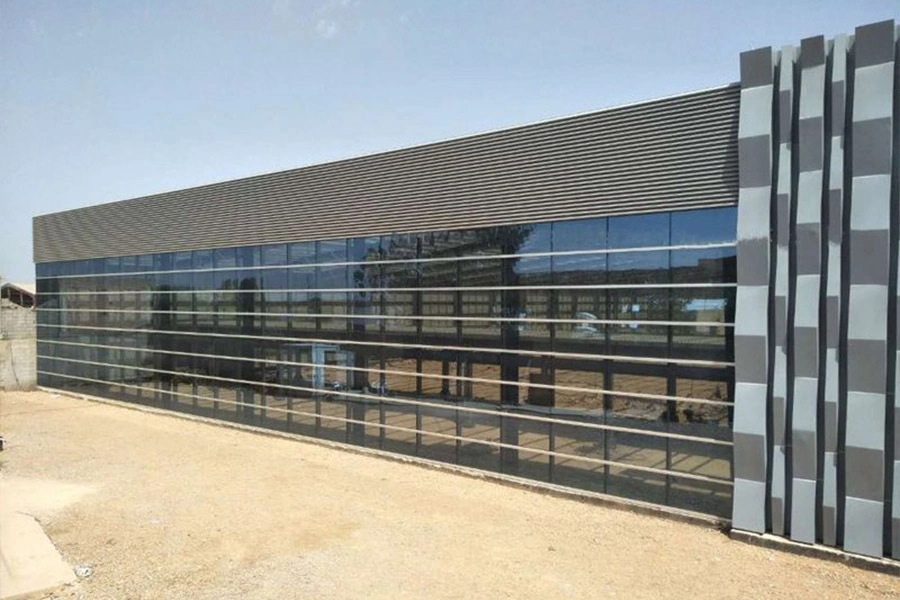

Project example: a 9,776 m² drug warehouse in Algeria used portal frames with Q355B and Q235B steel. Painted components were coordinated with panels, curtain walls, and aluminum panels, and we arranged on-site installation guidance. It shows why joint detailing, envelope interfaces and erection support should form one workflow.
For an accurate quotation, provide the project country, design code, building dimensions, bay spacing, roof slope, environmental loads, crane data, large openings, foundation information, and delivery method.
Frequently Asked Questions
Q: What are the main portal frame connection details?
A: The main joints are the eaves or knee connection, apex connection, column base, member splices, and connections for bracing and secondary steelwork. Each detail must match the loads and restraints assumed in the structural model.
Q: What is the difference between a portal frame knee connection and an apex connection?
A: The knee joins a column to a rafter at the eaves and commonly carries substantial bending. The apex joins the rafters at the ridge. Their geometry, bolt layout, forces and erection conditions are therefore different.
Q: Why is a portal frame haunch detail used?
A: A haunch increases local depth, stiffness and moment capacity near a highly loaded joint. It places material where demand is greater instead of increasing rafter depth across the full span.
Q: Should a portal frame base connection be pinned or fixed?
A: The decision depends on structural analysis, lateral loads, allowable deflection, anchor forces, foundation capacity, and cost. The constructed base must provide the restraint assumed by the engineer.
Q: Where should a portal frame splice connection be located?
A: Its position should reflect structural forces, member lengths, shipping limits, lifting plans, bolt access, and erection safety. The final location requires project-specific engineering rather than transport convenience alone.
